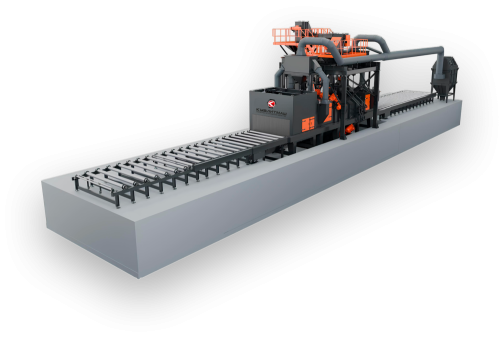

Сontinuous pass-through wheel blasting machine
The continuous shot blasting machine is designed for highly efficient cleaning of metal products and structures in continuous mode.
Сontinuous pass-through wheel blasting machine
It removes scale, rust, old coatings, and other contaminants, preparing the surface for painting, welding, assembly, or corrosion protection.
TECHNICAL SPECIFICATIONS
| Parameter Name | Model UDP 3000/1000 SA2.5 | ||
|---|---|---|---|
| 1. Unit Dimensions | |||
| 1.1 Height (excluding foundation), mm | ~8100 | ||
| 1.2 Width (excluding filters), mm | ~7 200 | ||
| 1.3 Length (including input and output roller conveyor), mm | ~37,550 | ||
| 2. Characteristics of workpieces | |||
| 2.1 Shot blast chamber window working area (W x H), mm | 3000 × 1000 | 2.2 Minimum / maximum overall dimensions of sheet metal, mm: – Length – Width – Height |
2000-6000 1250-3000 1.5-1000 |
| 2.3 Maximum overall dimensions of shaped rolled products (channel, I-beam, profile pipe, angle) (L x W x H), mm | 12,000 × 750 × 800 | ||
| 2.4 Maximum weight, no more than, kg | 10 000 | ||
| 2.5 Maximum load per shaft, kg | 2,000 | ||
| 3. Abrasive Equipment | |||
| 3.1 Abrasive Type | Cast Steel Shot (DSL), Crushed Steel Shot (DSK) | ||
| 3.2 Total Abrasive Ejection Rate, kg/min | 2,500 | ||
| 3.3 Turbine design: easily removable blades without mechanical fastening | Monodisk | ||
| 3.4 Turbine drive from electric motors | Direct | ||
| 3.5 Number of turbines in the equipment, pcs. | 12 | ||
| 3.6 Turbine impeller diameter, mm, not Less than | 320 | ||
| 3.7 Motor power of one turbine, kW, not less than | 11 | ||
| 3.8 Abrasive material discharge velocity, m/s, not less than | 75.0 | ||
| 3.9 Total filter surface, m2, not less than | 400 | ||
| 3.10 Cleaning Degree | SA 2.5 | ||
| 3.11 Abrasive Diameter, mm | ⌀ 0.8-1.2 | ||
| 4. Other Characteristics | |||
| 4.1 Total Rated Power of the Equipment, kW | ~190 | ||
| 4.2 Unit Power Supply, B | 380 ±10% | ||
