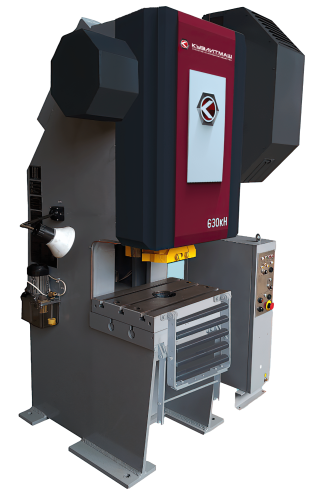

SINGLE CRANK PRESSES, SIMPLE OPERATION, OPEN SERIES KP with a fixed table, non-tilting, are designed for various cold stamping operations: blanking, punching holes, bending, shallow drawing, perforating, etc.
Presses can be used either independently or as part of automated complexes and lines.
Design Features:
- solid cast or all-welded annealed bed;
- single-stage drive with the shaft positioned parallel to the front of the press;
- multi-disc friction clutch-brake with pneumatic activation;
- manual adjustment of the slider stroke;
- manual adjustment of the distance between the table and the slider;
- fuse in the slide to protect the press from overload - brittle (shear);
- mechanical ejector in the slide;
- control system based on an industrial controller; two-hand push-button control.
Options:
- pedal control (supplied complete with work area fencing);
- pneumatic cushion in the table.
TECHNICAL SPECIFICATIONS
| Parameters | Models | ||
|---|---|---|---|
| KP2126 | KP2128 | KP2130 | |
| Nominal force, kN(tf) | 400(40) | 630(63) | 1000(100) |
| Slider stroke adjustable, mm | 10...90 | 10...100 | 10...130 |
| Frequency of slider strokes, min –1 – continuous unregulated – single |
160 56 |
140 45 |
100 45 |
| The greatest distance between the table and the slider in its lower position with the upper adjustment position and the greatest stroke of the slider, mm | 300 | 340 | 400 |
| The amount of adjustment of the distance between the table and the slide, mm | 65 | 80 | 100 |
| Distance from the axis of the slider to the frame (reach), mm | 250 | 300 | 340 |
|
Dimensions of the die plate, mm – from left to right – from front to back – thickness |
630 460 80 |
800 560 85 |
950 630 100 |
| Dimensions of the hole in the table, mm – from left to right – from front to back – diameter |
300 200 250 |
360 240 300 |
420 280 360 |
| Window width in the frame, mm, not less | 280 | 340 | 400 |
|
Overall dimensions of the slider sole, mm – from left to right – from front to back |
350 285 |
450 310 |
540 390 |
Main drive electric motor power, kW, no more | 6,3 | 8,5 | 12,0 | Approximate weight, kg | 3500 | 5500 | 9500 |
