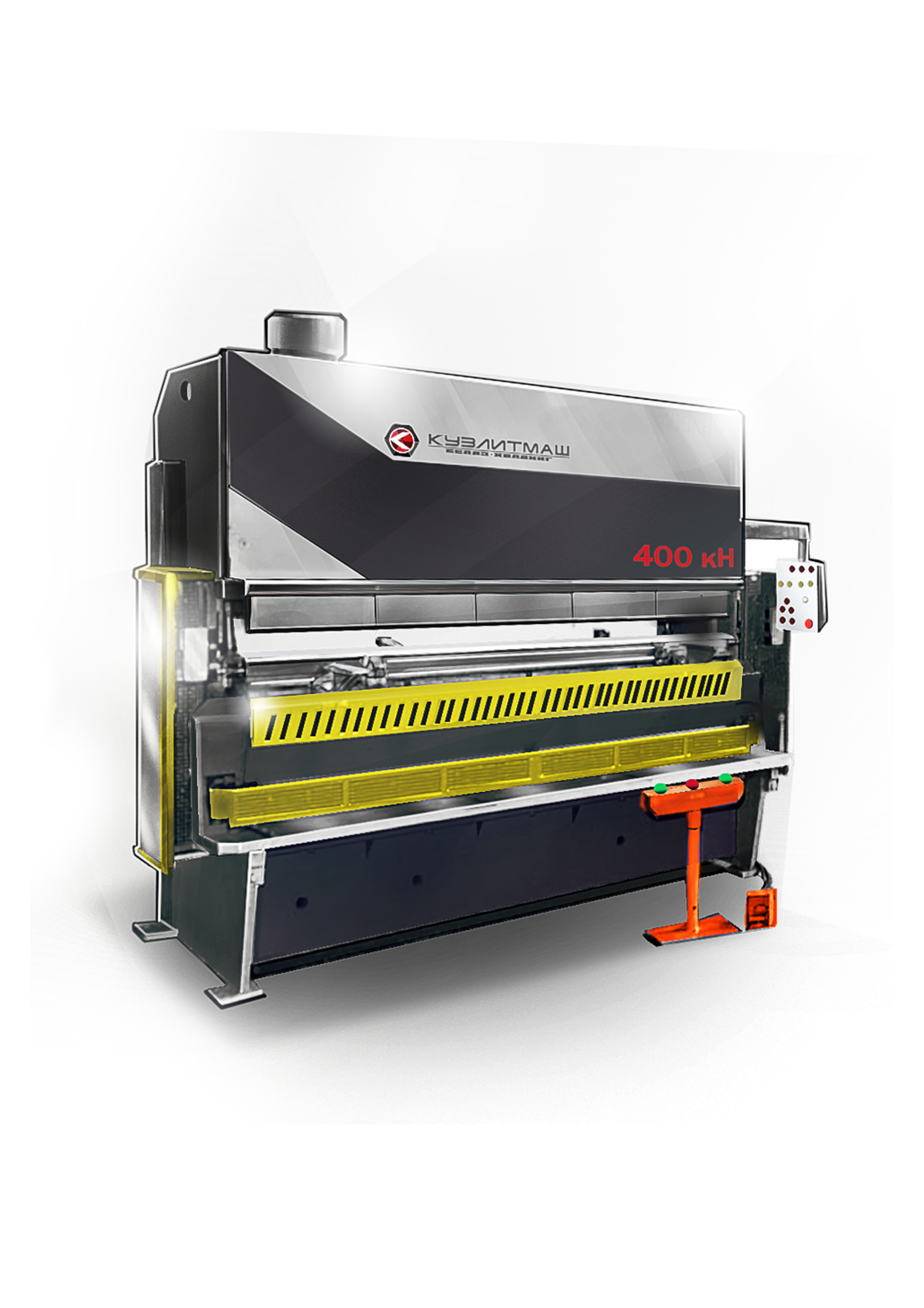

The fundamental feature of the development is determined by the structural combination of the press brake and shears for cutting sheet material into a single machine, the combined working body of which receives movement from the same drive and performs the bending operation when moving up, and the cutting operation when moving down without additional readjustment.<br>
In the universal V-shaped die supplied with the press it is possible to bend parts of various profiles.
In special dies, available for a fee, it’s possible to perform bending complex parts in one step, radius bending, hole punching and stamping.
The drive of the working body is hydraulic, through a lever which ensures the synchronous operation of the hydraulic cylinders and eliminates distortions; the hydraulic station is built-in, which reduces the vibration and acoustic load on the operator and the environment, and also ensures the technical aesthetics of the entire structure.
Separate for bending and for cutting backgauges make it possible to produce parts of the required accuracy degree.
The backgauges and slide adjustment mechanism are driven by electric motors.
The amount of adjustment of the stops is controlled by a D-Range Optimizer (DRO).
The press INP4.40 ensures that all safety and ergonomic requirements for forging and pressing equipment are met.
TECHNICAL SPECIFICATIONS
| Parameters | Model INP4.40 |
|---|---|
| For the largest dimensions of cut metal with ultimate strength less than or equal to 500 MPa (50 kg/mm2), mm, thickness × width × length when working with a backgauge | 4×2500×630 |
| The angle of the movable knife inclinatiom | 1°30′ |
| Number of hydraulic clamps, pcs. | 12 |
| Rated bending force, kN | 400 |
| Sheet thickness at maximum bending length (largest groove), mm | 3,5 |
| Working length of the slide (table length) and bolsters, mm | 2500 |
| Distance between racks of the frame in clear, mm | 2570 |
| Slider stroke adjustable, mm | 80...120 |
| Maximum adjustment of slide stroke , mm | 40 |
| Slider speed, mm/s, not less – during idle bending or reverse cutting – during the bending stroke – in the return bending or cutting stroke |
30 13 50 |
| Working pressure, MPa | 15 |
| Tank capacity, l | 215 |
| Rear stop travel, mm | 630 |
| Power of the electric motor of the main drive, kW | 7,5 |
| Total power of electric motors, kW | 9,8 |
| Operating modes | Adjustment, adjustment, single stroke bending, single stroke cutting |
| Overall dimensions of the press, mm – from left to right x front to back x height |
3310х1690х2560 |
Weight, kg | 5550 |
