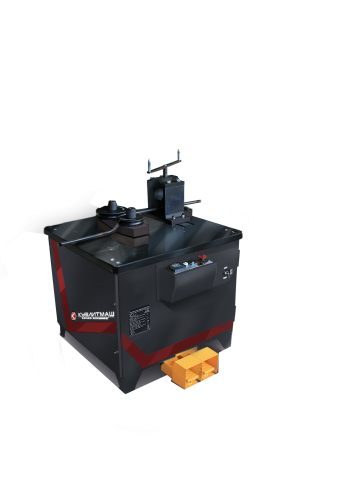

MACHINES FOR BENDING PIPES AND REINFORCEMENT
It is used for bending pipes, fittings in procurement shops of machine- building and repair enterprises as well as at enterprises of the construction industry.
MACHINES FOR BENDING PIPES AND REINFORCEMENT
The machine consists of a welded box-shaped frame, inside of which a two- stage worm gearbox is attached to the table, driven by an electric motor through a V-belt transmission. A bending arm with replaceable rollers for bending pipes of various diameters and sleeves for bending reinforcement bars in a cold state is installed on the output shaft of the gearbox.
The workpiece is clamped in order to prevent the workpiece from being pulled along its axis.
The counting of the coordinates of the bending angle is carried out according to the digital display device. The lubrication system is manual.
Machine control is pedal.
A set of replaceable rollers for bending pipes with a nominal diameter of 0 15,20,25,32,40,50 is included in the delivery set.
A set of bushings for reinforcement bending- is supplied for an additional fee and on special order.
The workpiece is clamped in order to prevent the workpiece from being pulled along its axis.
The counting of the coordinates of the bending angle is carried out according to the digital display device. The lubrication system is manual.
Machine control is pedal.
A set of replaceable rollers for bending pipes with a nominal diameter of 0 15,20,25,32,40,50 is included in the delivery set.
A set of bushings for reinforcement bending- is supplied for an additional fee and on special order.
TECHNICAL SPECIFICATIONS
| Parameters | Models IP1722 |
|---|---|
| Nominal pass of bent pipes, d mm | |
| St3, St5 according to GOST 380-2005 and steel 10, 15, 20, 35, 40 according to GOST 1050-88 with temporary resistance less than or equal to 60 kgf/mm2 St3, St5 according to GOST 380-2005 and steel 10, 15, 20 according to GOST 1050-88 with a temporary resistance less than or equal to 42 kgf/mm2 |
15; 20; 25; 32 40;50 |
| The torelable smallest radius of the pipe bend, mm (according to the diameters of the bent pipes) | 50; 65; 90; 115; 150; 200 |
| Diameter of bending reinforcement in according with GOST 5781-82, class A-I, with ultimate tensile strength less than or equal to 38 kgf/mm2, mm | 12; 14; 16; 18; 20; 22; 25; 28; 40 |
| The tolerable smallest bending radius of reinforcement bars, mm: – for diameter 12,16,18 – for diameter 20,22,25,28 – for diameter 32,36,40 |
30 50 60 |
| Bending shaft rotation frequency1/min | 3,0 |
| The greatest bending angle, degrees – for pipes with nominal passage15,20,25 – for pipes with nominal bore 32,40,50 |
180 90 |
| Installed power, kW | 5,5 |
| Overall dimensions, mm – from left to right – front to back – height above floor level |
920 1045 1220 |
| Weight, kg | 800 |
