C-FRAME HYDRAULIC PRESSES
The presses are designed for pressing in various parts, and can also be used for piercing, stamping, bending and straightening of various parts.

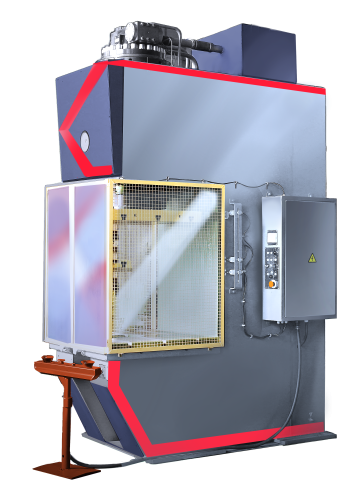

C-FRAME HYDRAULIC PRESSES
Individual press drive, hydraulic. The hydraulic unit is located inside the frame. C-shaped frame, welded from sheet metal. The piston-type cylinder is mounted on the top of the frame.
The presses are controlled from a two-handed remote control.
By special order, the press can be completed with the correct table and the correct device.
TECHNICAL SPECIFICATIONS
| Parameters | Models | ||||||
|---|---|---|---|---|---|---|---|
| P6320B | P6324B | PP6326 | P6328 | PB6330 | PP6332 | P6334S | |
| Rated force, kN | 100 | 250 | 400 | 630 | 1000 | 1600 | 2500 |
| Slide stroke(max), mm | 400 | 500 | 500 | 500 | 505 | 500 | 505 |
| The greatest distance between the table and slide, mm | 600 | 710 | 710 | 710 | 750 | 800 | 900 |
| Dimensions of the table , mm | 500х380 | 630х490 | 600х580 | 710х590 | 800х700 | 800х660 | 1000х1000 |
| Slide speed, mm/sec - at idle - during the work stroke - at idle |
144 0 - 18 160 |
144 0 - 18 160 |
120 0 - 8 280 |
144 0 - 18 240 |
130 0 - 18 160 |
100 0 - 8 100 |
125 0 - 12 110 |
| Distance from the slide rod to the frame, mm | 200 | 250 | 320 | 320 | 400 | 340 | 515 |
| Motor power, kW | 3 | 5,5 | 15 | 15 | 18 | 26,7 | 15 |
| Overall dimensions, mm - from left to right - front to back - height above floor level |
1000 1300 2365 |
1035 1600 2550 |
930 1830 3220 |
1140 1900 2680 |
1330 2200 2850 |
1355 2210 3500 |
1450 2330 3685 |
| Weight, kg, no more | 1750 | 1980 | 3050 | 3300 | 7000 | 8500 | 14210 |
