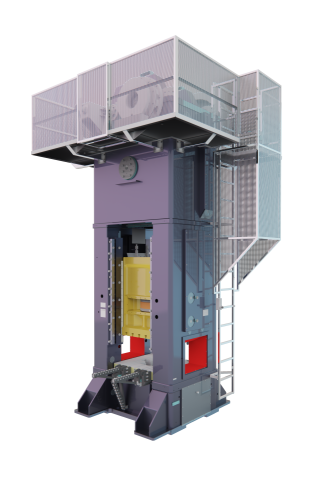

TRIMMING PRESSES

Order

Ask a Question

The model of equipment with the status "In stock" should be checked with the sales department

Trimming presses are designed for the operation of trimming flash (burrs) of forgings in hot and cold condition and the manufacture of sheet material parts with operations of punching, relatively shallow drawing and other cold stamping works.

Details

Trimming press includes treatments such as bending, rotating, drawing, or stretching implemented by special dies or punching tools. Trimming, or pressings, are created by inserting a metal billet into a specialist machine often referred to as a trim metal press.
Trimming presses can be also regarded as blanking. The blanking press is intended for manufacturing various parts of sheets using cold stamping operations: blanking, punching, drawing, bending, etc.
The presses can be supplied complete with a hydropneumatic cushion by requests of customers.
The control system provides the possibility of enframing presses into automatic lines and complexes.
It is also possible to cut the flash of forgings produced on hot stamping equipment in a hot and cold state.

Presses can be supplied complete with a hydropneumatic cushion, the need for which is determined by the customer.

The control system provides for the possibility of integrating presses into automatic lines and complexes.

TECHNICAL SPECIFICATIONS

Parameters	Models
Parameters	KP2534	KP9534	KP2536	KP9536	KP2538	KP9538	KP2540	KP9540
Rated force, kN	2500	2500	4000	4000	6300	6300	10000	10000
Slider stroke, mm	200	320	250	400	320	400	400	500
Frequency of continuous slide strokes, min –1, not less than	32	32	25	25	20	20	20	20
Frequency of single strokes, min –1, not less	24	24	19	19	15	15	15	15
Slide stroke to its extreme lower position? at which the press develops the rated force, mm	10	6	12	8	16	9,5	20	13
Distance between the die plate and the slide in its lower position a the upper adjustment position, mm	420	390	510	470	620	570	730	680
Adjustment value of the distance between the die plate and slide, mm	140	140	160	160	180	180	200	200
The die plate dimensions, mm	830х850	830х850	1000х1000	1000х1000	1250х1250	1250х1250	1600х1600	1600х1600
Die plate thickness, mm	140	140	160	160	180	180	220	220
The slide dimensions from, mm - front to back	650	650	800	800	1000	1000	1250	1250
Main drive motor power, kW	26,5	26,5	37	37	63	63	90	90
Press dimensions , mm - from left to right - front to back	3400 2750	3400 2750	3410 3140	3410 3140	3700 3700	3700 3700	4300 4540	4300 4540
Height above floor level, mm	5940	5180	5940	5940	6250	6250	6900	6900
Press weight, kg - without hydraulic cushion - with hydropneumatic cushion	23200	23400	32000 35820	32600 36420	49550 53400	49800 53650	79000 84000	79500 85000
