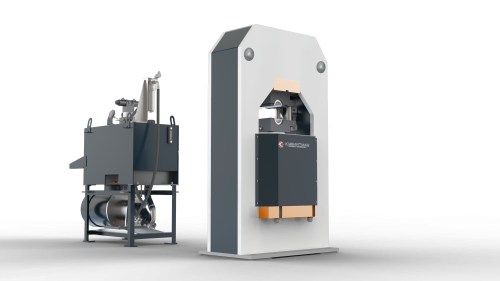

PRESS HYDRAULIC CLOSED

<p>
Press design  ensures safe working conditions subject to the rules of transportation, storage, operation, maintenance and repair given in this manual.
</p>
<p>
TECHNICAL SPECIFICATIONS
</p>
<style>
th {
        text-align: center;
        vertical-align: middle;
    }
</style>

<table width="100%" cellspacing="0" cellpadding="4" border="1">

<tr>
<th width="60%">Parameters</th>
<th>Models PG3436</th>
</tr>

<tr>
<td valign="middle" align="left">Rated force, kN(tf)</td>
<td valign="middle" align="center">4000(400)</td>
</tr>

<tr>
<td valign="middle" align="left">Diameter of crimped ropes GOST3079-80, mm</td>
<td valign="middle" align="center">6,2...36</td>
</tr>

<tr>
<td valign="middle" align="left">Rod stroke, mm</td>
<td valign="middle" align="center">100</td>
</tr>

<tr>
<td valign="middle" align="left">Cycle time, s</td>
<td valign="middle" align="center">15...30</td>
</tr>

<tr>
<td valign="middle" align="left">Overall dimensions of the press, mm, no more: <br>– from left to right<br>– front to back<br>– height</td>
<td valign="middle" align="center"> <br>1000<br>790<br>1815</td>
</tr>

<tr>
<td valign="middle" align="left">Overall dimensions of the hydraulic station, mm, no more: <br>– from left to right<br>– front to back<br>– height</td>
<td valign="middle" align="center"> <br>620<br>1360<br>1635</td>
</tr>

<tr>
<td valign="middle" align="left">Weight, kg <br>– without hydraulic station <br>– with hydraulic station</td>
<td valign="middle" align="center"> <br>2810<br>3400</td>
</tr>

<tr>
<th colspan="2" valign="middle" align="center">Electrical equipment characteristics</th>
</tr>

<tr>
<td valign="middle" align="left">Type of supply network current</td>
<td valign="middle" align="center">Three-phase alternating </td>
</tr>

<tr>
<td valign="middle" align="left">Current frequency, Hz </td>
<td valign="middle" align="center">50</td>
</tr>

<tr>
<td valign="middle" align="left">Voltage and type of current, V <br>– power circuit<br>– control circuits <br>– lighting circuits</td>
<td valign="middle" align="center"> <br>380 AC<br>110 AC<br>24 AC</td>
</tr>

<td valign="middle" align="left">Pumping unit electric motor power, kW</td>
<td valign="middle" align="center"> 18,5</td>
</tr>

<td valign="middle" align="left">Operating modes</td>
<td valign="middle" align="center"> Manual <br> Semi-automatic</td>
</tr>

<td valign="middle" align="left">Control system</td>
<td valign="middle" align="center"> Push-button<br> Pedal</td>
</tr>

<tr>
<th colspan="2" valign="middle" align="center">Hydraulic system characteristics</th>
</tr>

<td valign="middle" align="left">Working pressure, MPa</td>
<td valign="middle" align="center"> 27</td>
</tr>

<td valign="middle" align="left">Working fluid</td>
<td valign="middle" align="center"> Hydraulic oil <br>HLP 32 DIN 51524</td>
</tr>

<td valign="middle" align="left">Filtering fineness</td>
<td valign="middle" align="center"> 0,01</td>
</tr>

<td valign="middle" align="left">Purity of working fluid according to GOST 17216, class, not less</td>
<td valign="middle" align="center">13</td>
</tr>

<td valign="middle" align="left">Hydraulic station type</td>
<td valign="middle" align="center">free-standing</td>
</tr>

<td valign="middle" align="left">Tank capacity, l</td>
<td valign="middle" align="center"> 180</td>
</tr>
</table>
