SPECIAL OPEN SHEARS
Special open shears are designed for cutting steel bar (circle, strip, square and corner).

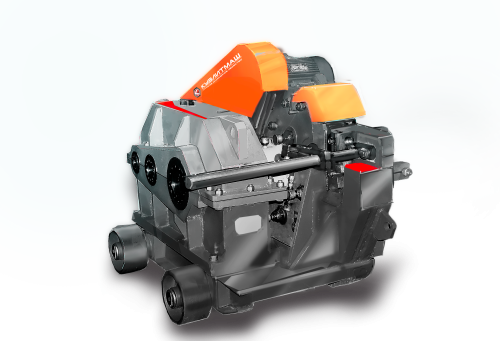

SPECIAL OPEN SHEARS
The frame of the shears is welded, mounted on wheels that allow easy reinstallation of the shears in the required service areas.
The slide is driven by an electric motor through a V-belt transmission, a two-stage spur gearbox and an eccentric shaft. A support with a ruler is used for cutting dimensional workpieces. Tool for cutting a square, circle, strip, and comer is interchangeable, included in the delivery set. Shears control is push-button. The operating mode is automatic.
TECHNICAL SPECIFICATIONS
| Parameters | Model N1226B |
|---|---|
| The greatest tolerable force of knives, KN | 400 |
| The largest cross-section of the cut material with a temporary resistance of not more than 500 MPa, mm - circle (diameter) - square - corner - strip |
32 27х27 70х70х6 6,3х80 |
| Maximum length of the workpiece to be cut along the support, mm | 590 |
| Knife strokes per minute | 15 |
| Installed power, kW | 2,4 |
| Overall dimensions, mm – from left to right – front to back, with a support – height above floor level |
1300 820 1035 |
| Shears weight, kg | 1090 |
